Description

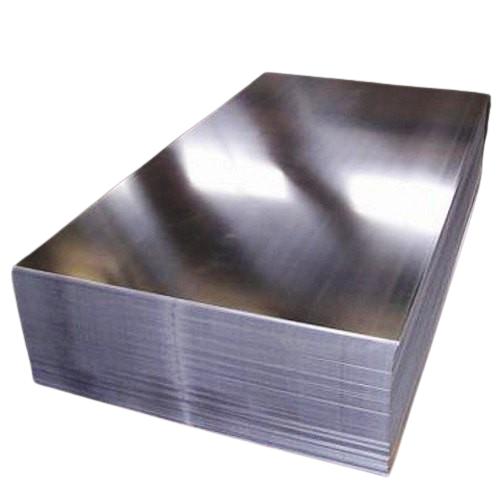

15CDV6 Sheets / 1.7734 Sheets
15CDV6 Sheets is a Chromium, Molybdenum & Vanadium Heat Treatable Steel with High Strength after Heat Treatment.
15CDV6 is a low carbon alloy steel with very good yield strength. It also has very good toughness and excellent weldability. Welding can be achieved without subsequent heat treatment and with negligible loss of properties.
15CDV6 is used in a High Yield and High Tensile Strength combination enables it to sustain high temperatures. Other Applications: Pressure Vessels, Rocket Motor Casings, Suspension Components, Wishbones, Track and Push Rods.
The alloy is easily welded and does not require localised heat treatment after welding. 15CDV6 combines outstanding yield strength with good toughness. In motorsport applications, the product offers a cost-effective solution in areas where a combination of high strength and excellent weldability is required.
15CDV6 is a high-strength alloy steel often used in the aerospace industry. It combines chromium, vanadium, and other elements to provide excellent mechanical strength and good toughness.
Generally Sheet & Plates is Not available in Ready Stock so we need to arrange or need to go on make to order basis so please share your inquiry to get better idea.
Current Stock Sizes :
15CDV6-ESR – 2.5 mm Sheet, 2.8mm Sheet, 4mm Sheet
15CDV6 Chemical Composition :
| Elements | Min | Max |
| C | 0.12 | 0.18 |
| Si | – | 0.20 |
| Mn | 0.80 | 1.10 |
| S | – | 0.015 |
| P | – | 0.020 |
| Cr | 1.25 | 1.50 |
| Mo | 0.80 | 1.00 |
| V | 0.20 | 0.30 |
Applications of 15CDV6 Sheets :
- • Motorsport Applications
- • Suspension components
- • Track and push Rods
- • Roll cages
- • Uprights
• Wishbones - • Aerospace
• Defence
• Missile
• Pressure vessels
• Rocket motor casings
Characteristics of 15CDV6 Steel :
• Chromium Vanadium Steel
• Easily Welded
• Outstanding Yield Strength
• Good Toughness
• Heat Treatable
How 15CDV6 is used in Aerospace ?
The practical applications of this steel in aircraft construction.
Fuselage – The 15CDV6 grade is often used for aircraft chassis and fuselage structures. In addition to stringers (longitudinal beams that provide structural support for the fuselage), this steel is applied to the ribs and frame of the fuselage.
Landing Gear – The high resistance to wear and fatigue of 15CDV6 makes it ideal for landing gear components, which are subject to high stress: its struts, wheel axles, or even the relay connecting rod.
Fasteners – 15CDV6 is also used for bolts, screws, and other fasteners like rivets. Its high mechanical strength and corrosion resistance make it a steel of choice to ensure the reliability of these elements.
15CDV6 Sheet is a highly regarded steel in the Aerospace Industry. Its popularity is based on a set of properties that meet the strict standards of this demanding industry. Its high tensile and compressive mechanical strength qualifies it as a material of choice for structural components that endure high stresses. This robustness is not just a mechanical attribute but also a guarantee of safety, as it is accompanied by good toughness. In fact, 15CDV6’s ability to resist fracture or cracking under various load conditions makes it a reliable option in an industry where safety cannot be compromised.
This grade also has excellent machinability. Whether for cutting, forming, or welding, 15CDV6 readily lends itself to various processing methods, thereby reducing production costs. This ease of handling goes hand in hand with excellent thermal stability. This last point is crucial in aerospace, where components are subjected to extreme temperature ranges, from very cold to very hot, without compromising their performance.
Another advantage of 15CDV6 Sheet and Round Bar is its low weight. For similar mechanical performance, it offers a more favorable strength-to-weight ratio than many other steels. In the field of aerospace, where every gram matters, this property is highly appreciated. Moreover, its chemical composition makes it compatible with other metals and composite materials frequently used in the aerospace industry. This compatibility facilitates its integration into complex systems, making it a preferred choice for engineers and aircraft designers.
In summary, 15CDV6 is a multifunctional material that excels in various areas such as mechanical strength, toughness, machinability, thermal stability, and lightweight properties, while also being compatible with a wide range of materials used in aerospace.
