Description

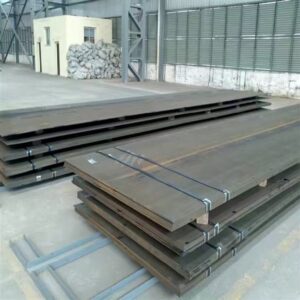

S690QL PLATE HIGH YIELD STRENGTH
S690QL Plate is a high yield strength structural steel grade produced in accordance with EN 10025-6. This steel is designed to provide an excellent combination of high strength, toughness, abrasion resistance and weldability.
Due to the materials high strength nature, using S690QL will promote leaner designed structures with increased payload capacity and energy efficiency.
S690QL is a high strength quenched and tempered steel grade that complies to steel specification EN 10025. The designation S690QL refers to a minimum yield strength of 690 MPa.
The combination of good availability and pricing and high strength combined with ease of fabrication has made S690QL steel plate a popular grade for both mobile applications such as cranes and lifting equipment and fixed steel structures. The high strength nature of this steel means that structures can be designed lighter and for mobile application this means increase in payload and operational efficiency.
Material/ steel number: 1.8928
EN10025-6 : 2004 Hot rolled products of structural steels. Technical delivery conditions for flat products of high yield strength structural steels in the quenched and tempered condition.
What is S690QL Plate ?
- • S – Structural steel
- • 690 – Minimum yield strength MPa
- • Q – Quenched and tempered delivery condition
- • L – Impact energy tested at -40ºC
Standard Stock List Sizes :
- • 6 / 8 / 10 / 12 / 16 / 20 / 25 / 30 mm – 2500 x 6000 / 12000
• 40 / 50 / 60 / 65 / 70 / 75 mm – 2500 x 6000 / 12000
• 80 / 90 / 100 / 125 / 150 mm – 2500 x 6000
Few Thickness are not available in ready stock due to slow moment and need to made on order.
We can also provide cut to sizes as per client requirements.
So for more Sizes, Rates & Availability please contact us at textron.steel.alloys@gmail.com .
S690QL Chemical Composition of S690QL :
| Elements | % |
| C | max 0.2 |
| Si | max 0.8 |
| Mn | max 1.7 |
| Ni | max 2 |
| P | max 0.02 |
| S | max 0.01 |
| Cr | max 1.5 |
| Mo | max 0.7 |
| V | max 0.12 |
| N | max 0.015 |
| Nb | max 0.06 |
| Ti | max 0.05 |
| Cu | max 0.5 |
| Zr | max 0.15 |
| B | max 0.005 |
| CEV | max 0.83 |
S690QL Mechanical Properties of S690QL :
| Nominal thickness (mm) |
Minimum yield strength (MPa) |
Tensile strength (MPa) |
Minimum Elongation (%) |
Minimum impact energy (J) @ -40°C |
| 3 ≤ 50 | 690 | 770 – 940 | 14 | 30 longitudinal or 27 transverse |
| > 50 ≤ 100 | 650 | 760 – 930 | ||
| > 100 ≤ 150 | 630 | 710 – 900 |
Applications of S690QL Plates :
S690QL is a very high strength structural steel and can result in greater load-carrying capacities and lighter structures when used in place of conventional structural steels.
- • Earthmoving Equipment
- • Dump Trucks
- • Mobile Cranes
- • Drilling Rigs
- • High Speed Fans
- • Bridges
- • Heavy transportation
- • Machine building
- • Steel constructions
- • Lifting equipment
Approximate Equivalents of S690QL :
ASTM A514, EN 10149-2 Grade S700MC, AS/NZS 3579 Grade 700, AM 700, Bisalloy 80.
Equivalent grades of steel S690QL (1.8928) :
| EU | EN | S690QL |
| USA | – | A709-100 |
| Germany | DIN,WNr | TStE690V |
| France | AFNOR | E690T, S690T, E690TFP |
| European old | EN | FeE690VKT |
| Sweden | SS | 2625 |
| Inter | ISO | E690 |
Fabrication of S690QL Plates :
S690QL steel plate can be readily formed or bent at room temperature if adequate power is available and proper procedures are used.
Generally, the power required to form S690QL will be three times that required for carbon structural steel.
