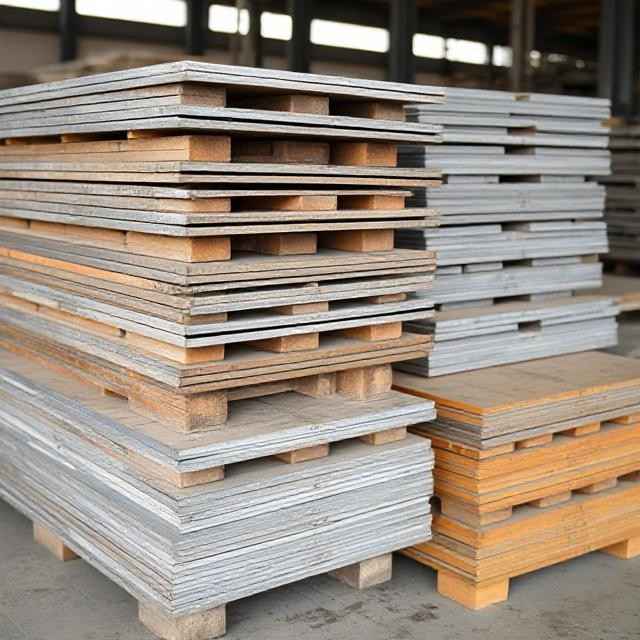

Aluminium 5083 Plates
Aluminum 5083 Plates have higher strength than 5052 plate and has exceptional thermal conductivity. In the tempered condition, it retains good formability due to excellent ductility. It is highly suitable for welding and can be hardened by cold work. Because Aluminium 5083 exhibits excellent resistance to general corrosion, it is used in Marine Applications. Since Aluminum 5083 is capable of withstanding extremely low temperatures without brittleness or loss of properties, it is especially suited to the cryogenic market. Alloy 5083 has been used in vehicle armor plate due to its high strength factor.
Aluminium 5083 is known for exceptional performance in extreme environments. 5083 is highly resistant to attack by both seawater and industrial chemical environments. 5083 also retains exceptional strength after welding. It has the highest strength of the non-heat treatable alloys but is not recommended for use in temperatures in excess of 65°C.
5083 Aluminium plate is known for its excellent strength, weldability, and corrosion resistance, making it a popular choice in marine applications, transportation, and construction projects. Textron Steel and Alloys offers 5083 Aluminium plate in H111, H112, H116 and H321 temper etc.
We Textron Steel and Alloys stocks thicknesses from 0.250″ – 2.00″, widths up to 120″ and lengths up to 300″ or can accommodate any customer specific requirements. All material is fully certified to ASTM B209 and ASME SB209.
Aluminium 5083 Chemical Composition of 5083 Plates :
| Elements | Range % |
| Silicon | 0.40 |
| Iron | 0.40 |
| Copper | 0.10 |
| Manganese | 0.40 – 1.00 |
| Magnesium | 4.00 – 4.90 |
| Chromium | 0.05 – 0.25 |
| Zinc | 0.25 |
| Titanium | 0.15 |
| Others, each | 0.05 |
| Others, total | 0.15 |
| Balance Aluminium | – |
Typical Mechanical Properties :
| Temper | Tensile Strength | Yield Strength | Elongation |
| KSI | KSI | % | |
| O (annealed) | 42 | 21 | 14 |
| H112 | 43 | 23 | 10 |
| H116 | 46 | 33 | 10 |
| H321 | 46 | 33 | 10 |
Mechanical Property Specification – Single values are maxima except as noted
| Alloy and Temper | Thickness mm | Tensile Strength | Elongation (% min in 50mm) | ||||
| Over | Up to | Ultimate | Yield | ||||
| Min | Max | Min | Max | ||||
| 5083 0 | 1.2 | 40 | 275 | 350 | 125 | 200 | 16 |
| 5083 H112 | 6.3 | 40 | 275 | – | 125 | – | 10-12 |
| 5083 H32 | 3.2 | 40 | 305 | 385 | 215 | – | 10-12 |
| 5083 H321 | 3 | 40 | 305 | 385 | 215 | 295 | 10 |
| 5083 H116 | 3 | 40 | 305 | – | 215 | – | 10 |
| 5383 H321 | 3 | 50 | 305 | 380 | 220 | – | 10 |
| 5383 H116 | 3 | 50 | 305 | – | 220 | – | 10 |
Applications of 5083 Plates :
• LNG ship construction
• Pressure vessels
• Storage tanks
• Welded structures (high strength)
• Armor plate
• Drilling rigs
• Shipbuilding
• Rail cars
• Vehicle bodies
• Tip truck bodies
• Mine skips and cages
• Pressure vessels
Marine Applications :
5083 cast aluminum plate is used in a variety of marine applications, such as boat hulls, propellers, and rudders. It is resistant to corrosion in salt water, making it a good choice for marine applications. For example, it is used in the construction of boat hulls because it is strong and lightweight, making it a good choice for boats that need to be maneuverable and fuel-efficient. It is also used in the construction of propellers and rudders because it is resistant to corrosion and can withstand the harsh environment of the ocean.
Standards Referenced :
AS/NZS 1734:1997 Reconfirmed 2020 – Aluminium and Aluminium alloys – Flat sheet, coiled sheet, and plate. ASTM B209M – 14. Standard Specification for Aluminum and Aluminum-Alloy Sheet and Plate.
ASTM B928M-09 – Standard Specification For High Magnesium Aluminum-Alloy Sheet And Plate For Marine Service And Similar Environments
ASTM G66 – Standard Test Method for Visual Assessment of Exfoliation Corrosion Susceptibility of 5XXX Series Aluminum Alloys (ASSET Test)
ASTM G67 -Standard Test Method for Determining the Susceptibility to Intergranular Corrosion of 5XXX Series Aluminum Alloys by Mass Loss After Exposure to Nitric Acid (NAMLT Test)
ASTM G44 – Standard Practice for Exposure of Metals and Alloys by Alternate Immersion in Neutral 3.5 % Sodium Chloride Solution.
