Description

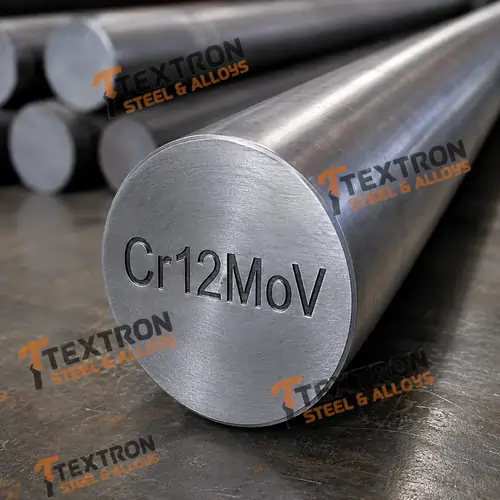

Cr12MoV Round Bars / Flat Bars / GBT T21201 Round Bars
Cr12MoV Round Bars are premium cold work tool steel bars known for their exceptional wear resistance, high hardness, excellent compressive strength, and dimensional stability after heat treatment. This Chromium-Molybdenum-Vanadium Alloy Tool Steel is widely used for manufacturing punches, dies, shear blades, thread rolling dies, cold forging tools, blanking dies, gauges, and precision tooling.
Cr12MoV is a high carbon, high chromium cold work die steel developed to provide outstanding wear resistance, high hardenability, and improved toughness compared to conventional Cr12 tool steel. The addition of molybdenum and vanadium refines the carbide structure, resulting in better fatigue resistance and longer service life.
It is extensively used in automotive tooling, metal stamping, engineering industries, aerospace tooling, and heavy industrial applications.
M/s Textron Steel and Alloys supplies high-quality Cr12MoV Round Bars in forged, peeled, bright, turned, polished, and centerless ground finishes. Our bars are available in various diameters and lengths with complete mill test certificates.
What is Cr12MoV Steel ?
To understand the comparison, we first need to define the challenger.
Cr12MoV material is the Chinese GB standard designation. The code stands for:
• Cr12 : ~12% Chromium (High corrosion/wear resistance)
• Mo : Molybdenum (Hardenability)
• V : Vanadium (Wear resistance)
GB/T Cr12MoV Chemical composition :
| Elements | Min. | Max. |
| C | 1.45 | 1.70 |
| Si | – | 0.40 |
| Mn | – | 0.40 |
| P | – | 0.030 |
| S | – | 0.030 |
| Cr | 11.00 | 12.50 |
| Mo | 0.40 | 0.60 |
| V | 0.15 | 0.30 |
| Co | – | 1.00 |
Cr12MoV Round Bar Specifications :
| Property | Details |
| Grade | Cr12MoV |
| Steel Type | Cold Work Tool Steel |
| Product Form | Round Bars |
| Diameter | 16 mm to 500 mm |
| Length | 3 to 6 Meters or Cut Length |
| Surface Finish | Black, Bright, Peeled, Ground, Turned, Polished |
| Manufacturing | Forged, Hot Rolled |
| Condition | Annealed, Hardened, Tempered |
| Standard | GB/T 1299 |
Key Features of Cr12MoV :
• Excellent wear resistance
• High hardness after heat treatment
• Outstanding dimensional stability
• Superior compressive strength
• Improved toughness over Cr12 steel
• Excellent edge retention
• Good polishing characteristics
• Suitable for long production runs
Applications of Cr12MoV Round Bars are widely used in:
• Cold stamping dies
• Blanking dies
• Punches
• Shear blades
• Thread rolling dies
• Cold extrusion dies
• Precision gauges
• Cutting tools
• Slitting knives
• Woodworking cutters
• Metal forming tools
• Automotive tooling
• Industrial molds
Industries Served :
• Automotive
• Aerospace
• Tool & Die Manufacturing
• Heavy Engineering
• Industrial Machinery
• Metal Processing
• Forging Industry
• Precision Engineering
