Description

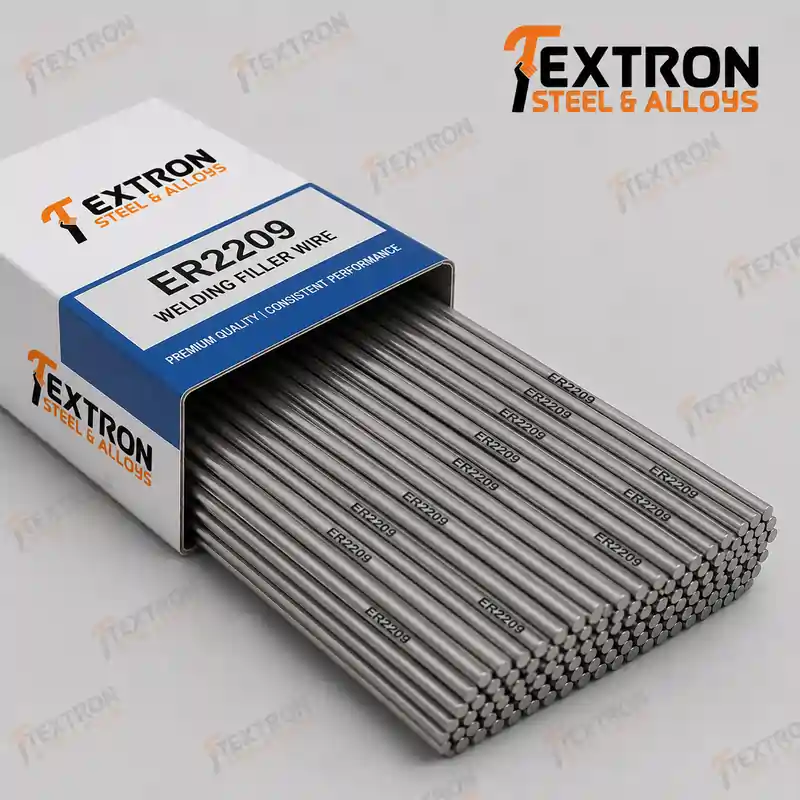

ER2209 Welding Filler Wire
ER2209 Welding Filler Wire is specially developed for welding Duplex Stainless Steel 2205 (UNS S31803 / S32205) and similar duplex grades. Manufactured in accordance with AWS A5.9 ER2209 and ASME SFA 5.9, this filler wire delivers outstanding mechanical strength, excellent corrosion resistance, and superior resistance to chloride stress corrosion cracking. It is widely used in offshore, petrochemical, desalination, marine, and chemical processing industries.
Textron Steel and Alloys is a leading supplier, stockist, and exporter of ER2209 Welding Filler Wire.
What is ER2209 Welding Filler Wire?
ER2209 is a duplex stainless steel welding wire containing approximately 22% Chromium, 9% Nickel, 3% Molybdenum, and Nitrogen. It is intentionally alloyed with slightly higher nickel content than the base metal to maintain the proper ferrite-austenite balance in the weld deposit, resulting in high strength and excellent corrosion resistance.
Specifications of ER2209 Wire:
| Specification | Value |
| AWS Specification | AWS A5.9 |
| ASME Specification | SFA 5.9 |
| Classification | ER2209 |
| UNS Number | S39209 |
| EN ISO | W 22 9 3 N L |
| Welding Process | TIG (GTAW), MIG (GMAW) |
ER2209 Chemical Composition :
| Element | Percentage |
|---|---|
| Carbon (C) | ≤0.03 |
| Chromium (Cr) | 21.50 – 23.50 |
| Nickel (Ni) | 7.50 – 9.50 |
| Molybdenum (Mo) | 2.50 – 3.50 |
| Manganese (Mn) | 0.50 – 2.00 |
| Silicon (Si) | ≤0.90 |
| Nitrogen (N) | 0.08 – 0.20 |
| Phosphorus (P) | ≤0.03 |
| Sulfur (S) | ≤0.03 |
| Copper (Cu) | ≤0.75 |
Available Sizes :
TIG Filler Rod – 1.6 mm, 2.0 mm, 2.4 mm, 3.2 mm
MIG Welding Wire – 0.8 mm, 1.0 mm, 1.2 mm, 1.6 mm
Features of ER2209 :
• Excellent resistance to pitting corrosion
• Outstanding chloride stress corrosion cracking resistance
• High tensile and yield strength
• Excellent weldability
• Stable arc with low spatter
• Superior crack resistance
• Excellent impact toughness
• Smooth wire feeding
• Consistent weld bead appearance
• Suitable for demanding industrial applications
Applications of ER2209 :
ER2209 Welding Filler Wire is extensively used in:
• Offshore platforms
• Marine engineering
• Chemical processing plants
• Petrochemical industries
• Oil & gas pipelines
• Pressure vessels
• Heat exchangers
• Desalination plants
• Pulp & paper mills
• Water treatment facilities
• Food processing equipment
• Pharmaceutical plants
Advantages of ER2209 :
• High resistance to seawater corrosion
• Excellent mechanical properties
• Long service life
• Low maintenance cost
• Superior weld integrity
• Suitable for high-pressure applications
• Reliable performance in aggressive environments
Industries Served :
• Oil & Gas
• Offshore Construction
• Marine Engineering
• Chemical Processing
• Fertilizer Plants
• Power Generation
• Shipbuilding
• Water Treatment
• Pharmaceutical Industry
• Food Processing
