Description

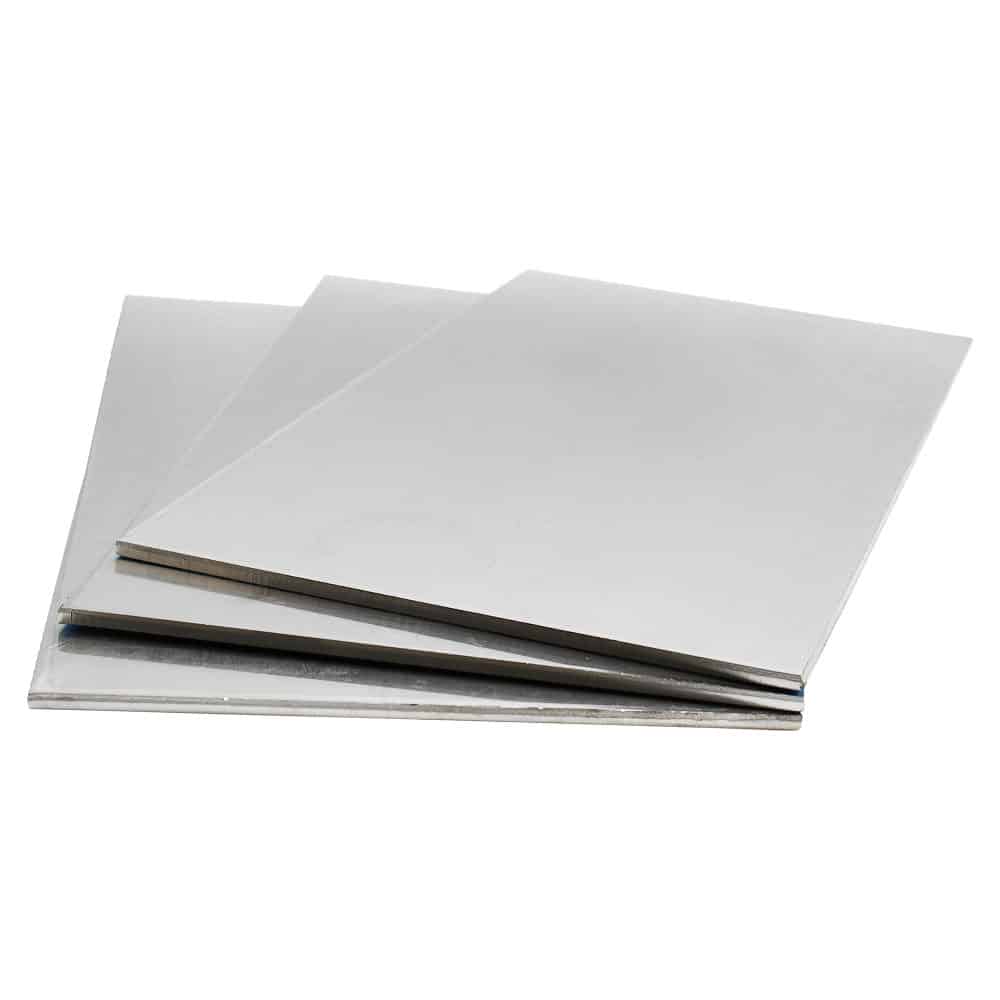

Aluminium 2024 T351 Plates & Sheets
2024 T351 Plates is a Heat Treatable Aluminum Alloy known for its high strength-to-weight ratio and good fatigue resistance. It is primarily used in aerospace applications due to its suitability for fuselage skins, wing tension members, and other structural components. The alloy’s primary alloying element is copper.
Aluminium 2024 is one of the more prominent aluminium alloys. Due to the alloys good fatigue resistance, especially in thick plate form, the material is specified for use in the aerospace and military sector in fuselage applications in such areas as structures and wing tension members. With improved fracture toughness and fatigue crack growth, Alloy 2024 continues to maintain strength characteristics. The alloy is available in T3, T4 and T8 tempers and in the annealed state.
Aluminum 2024, known for its use in the aircraft industry, is an alloy that offers excellent strength. When in the annealed condition it is readily formed and has good machinability. Though it has a relatively low level of corrosion resistance, it can be machined to a high finish.
Aluminium 2024 Chemical Composition of 2024 :
| Elements | Min. | Max. |
| Si | – | 0.50 |
| Fe | – | 0.50 |
| Cu | 3.80 | 4.90 |
| Mn | 0.30 | 0.90 |
| Mg | 1.20 | 1.80 |
| Cr | – | 0.10 |
| Zn | – | 0.25 |
| Ti | – | 0.15 |
| V | – | 0.05 |
| Zr | – | 0.05 |
| Other Each | – | 0.05 |
| Other Total | – | 0.05 |
Applications of Aluminium 2024 Plates :
• Aircraft fuselage
• Commercial & military aircraft
• Wing tension members
• Critical Aircraft structures
• Fuselage skins in commercial and military aircraft
• Wing tension members
• Shear webs and ribs
• Truck wheels
• Crew machine products
• Veterinary and orthopedic braces
• Scientific instruments
• Rivets
Textron Steel and Alloys offers a wide variety of Aluminum 2024 like plates, sheets, and bars. All of the Aluminum 2024 available from Textron Steel and Alloys meets or exceeds many leading industry standards including those from ASTM, AMS, DIN, MIL-Spec, QQ, DFARS and SAE.
