Description

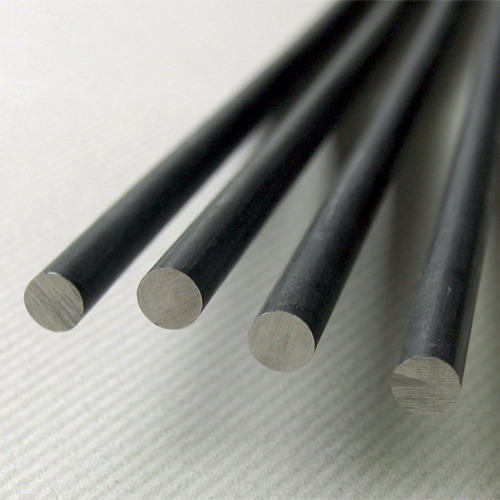

40CrMnNiMo8-6-4 Round Bars
40CrMnNiMo8-6-4 Round Bars is a plastic mould steel that is usually supplied in a hardened and tempered condition. Exhibiting good machinability with better polishability.
1.2738 is a plastic mould tool steel, used mainly for plastic injection die moulds. It can be viewed as enhanced version of 1.2311 alloy, with 1% nickel content having a positive effect on hardenability.
The steel is machinable, polishable, and suitable for texturing. Welding is somewhat difficult, but possible. Make sure to pre-heat and perform tempering, when the piece colled down after welding.
40CrMnNiMo8-6-4 | 1.2738 is a German Cold work tool alloy steel material grade.it is shock resisting steel. it belong to DIN 17350 standard. Digital Grade material number 1.2738. Metal Steel Grade W-Nr 40CrMnNiMo8-6-4. It is a die steel, use in extrusion moulds, Hot Cast moulds. like aluminium production, Aluminium cutting mold. Our Tool Steel material 100 % ultrasonic tested with good price. Small size steel products make by hot rolled, large size steel products make by forging. 1.2738 with 40CrMnNiMo8-6-4 is equivalent Belong to W-Nr and DIN.
DIN 1.2738 & DIN 1.2738HH steel is one kind of plastic mould steel especially for big steel mould parts, it is equivalent to 1.2738 Tool Steel and AISI P20+Ni Tool Steel.
We Textron Steel and Alloys are Stockist and Supplier of 1.2378 / 40CrMnNiMo8-6-4 Round Bars. For any inquires please contact us.
40CrMnNiMo8-6-4 Chemical Composition of 40CrMnNiMo8-6-4 :
| Elements | % |
| C | 0.35 – 0.45 |
| Si | 0.20 – 0.40 |
| Mn | 1.30 – 1.60 |
| Ni | 0.90 – 1.20 |
| P | max 0.030 |
| S | max 0.030 |
| Cr | 1.80 – 2.10 |
| Mo | 0.15 – 0.25 |
Applications of 40CrMnNiMo8-6-4 Round Bar :
Plastic Moulds
Frames for plastic Pressure Dies
Hydroforming Tools.
Main Characteristics :
It features excellent hardening penetration, good workability, polishing and photoengraving properties, This steel is used for plastic moulds of medium and big size. It can be subject to a nitriding treatment to improve its wear resistance.
